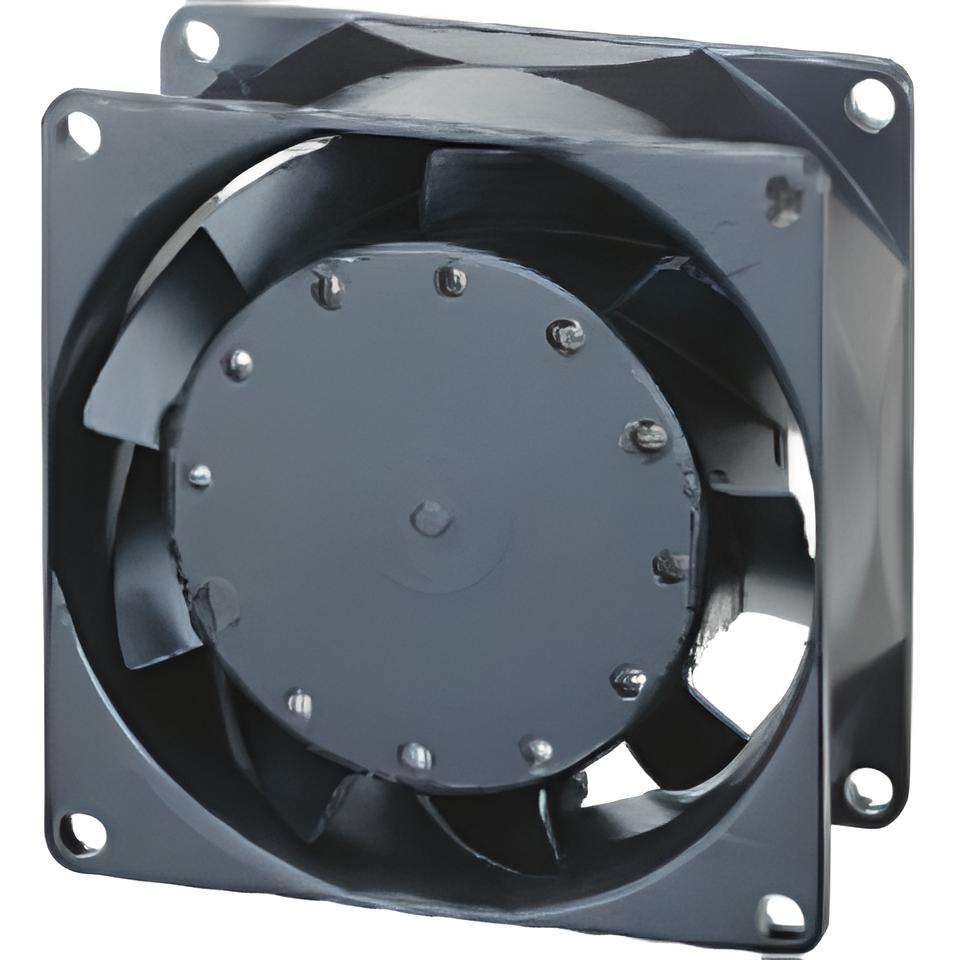

AC 8038M

https://www.luft.es/web/image/product.template/12/image_1920?unique=d92ff14

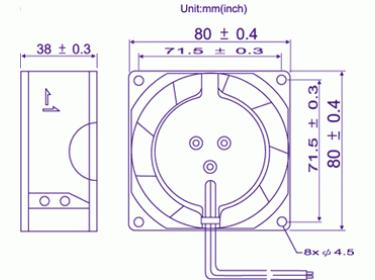

Tamaño:
80 x 80 x 38mm (3,15" x 3,15" x 1,5")

Construcción:
Carcasa de aluminio fundido a presión. Impulsor metálico, motor de polo sombreado. Protegido por impedancia. Cable de plomo o terminal disponible. Entrada de aire sobre los puntales. Sistema de rodamiento de bolas o de casquillo preciso.

Temperatura de funcionamiento:
Casquillo -10ºC a +70ºC Rodamiento de bolas -30ºC a +80ºC

Resistencia de aislamiento:
10 meg Ohms min. a 500V DC (entre el marco y el terminal)

Resistencia dieléctrica:
1500 VAC un minuto

Peso: 420 gramos Quiero que traduzcas este texto al español

0,00 € 0.0 EUR 0,00 €

0,00 €

Not Available For Sale

Esta combinación no existe.

Contáctenos





​ ​  ​ ​


Model No.BearingRated voltage(VAC)Frequency (Hz)Max.Rated current (mA)Max.input power (W)Speed (r.p.m.)Max. Air Flow (CFM)Max. Air Pressure (mmH2O)Noise dB(A)
KLA115AS080ASWLSleeve11550/60100/708/71700/220018/231.95/2.3528/25
KLA115AS080ABWLBall11550/60 100/70 8/71700/220018/231.95/2.3528/25
KLA115AS080ASWMSleeve11550/60 130/120 10/92150/300022/262.99/3.4327/31
KLA115AS080ABWMBall11550/60 130/120 10/92150/250022/262.99/3.4327/31
KLA115AS080ASWHSleeve11550/60 130/120 11/102400/280025/293.73/4.5030/37
KLA115AS080ABWHBall115 50/60 130/120 11/102400/280025/293.73/4.5030/37
KLA115AS080ASWYSleeve115 50/60 110/1009/82680/315025/302.85/3.3539/41
KLA115AS080ABWYBall11550/60110/1009/82680/315025/302.85/3.3539/41
KLA115AS080ASWSSleeve11550/60140/13011/102700/310026/322.90/3.4031/34
KLA115AS080ABWSBall11550/60140/13011/102700/310026/322.90/3.4031/34
KLA230AS080ASWLSleeve23050/60100/708/71700/220018/231.95/2.3528/25
KLA230AS080ABWLBall230 50/60 100/70 8/71700/220018/231.95/2.3528/25
KLA230AS080ASWMSleeve230 50/60 130/120 10/92150/300022/262.99/3.4327/31
KLA230AS080ABWMBall230 50/60 130/120 10/92150/250022/262.99/3.4327/31
KLA230AS080ASWHSleeve230 50/60 130/120 11/102400/280025/293.73/4.5030/37
KLA230AS080ABWHBall230 50/60 130/120 11/102400/280025/293.73/4.5030/37
KLA230AS080ASWYSleeve230 50/60 110/1009/82680/315025/302.85/3.3539/41
KLA230AS080ABWYBall230 50/60110/1009/82680/315025/302.85/3.3539/41
KLA230AS080ASWSSleeve230 50/60140/13011/102700/310026/322.90/3.4031/34
KLA230AS080ABWSBall23050/60140/13011/102700/310026/322.90/3.4031/34
KLA123AS080ABWSSleeve230/11550/6080/15013/132700/300026/322.90/3.4033/38
KLA123AS080ASWSBall230/11550/6080/15013/132700/300026/322.90/3.4033/38
