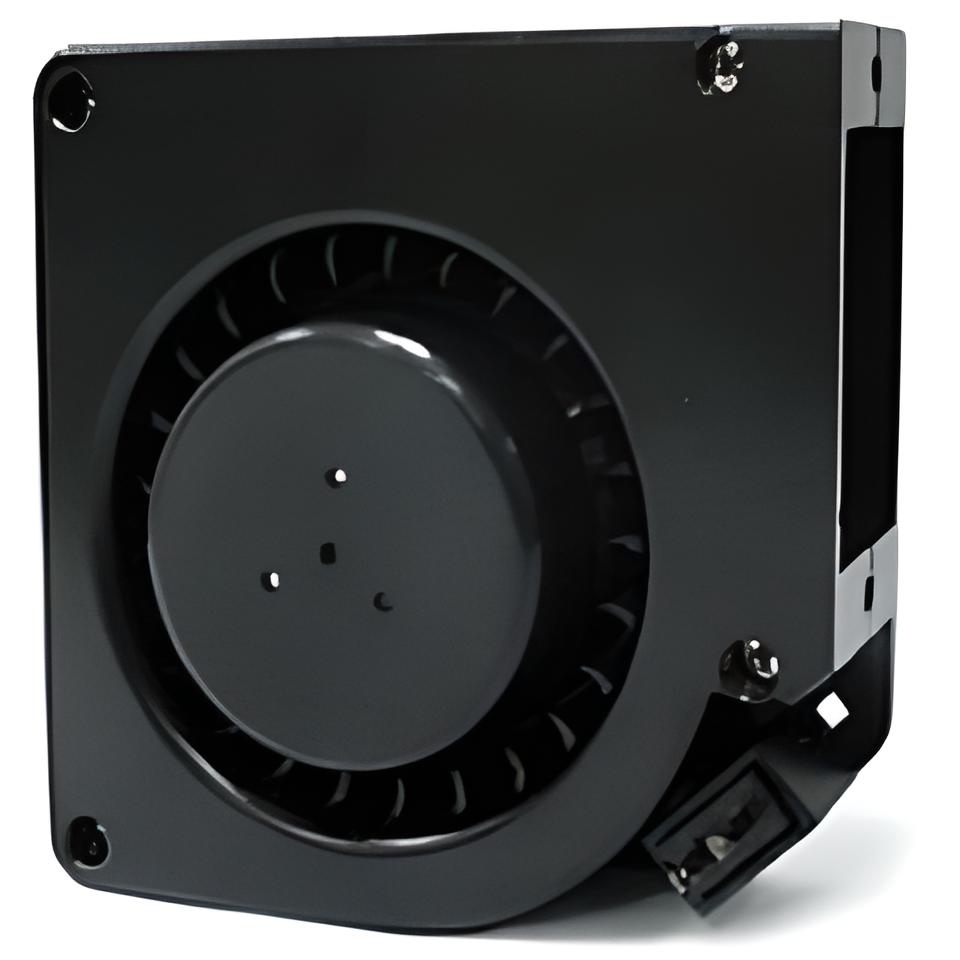

AC BLOWER 12131

https://www.luft.es/web/image/product.template/60/image_1920?unique=d92ff14

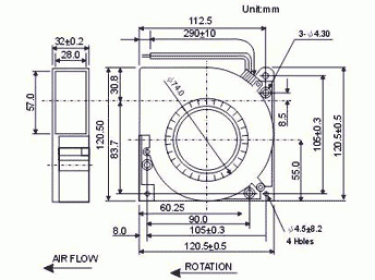

Tamaño:
121 x 121 x 31 mm (4.76" x 4.76" x 1.22")

Construcción:
Carcasa espiral de policarbonato reforzado con fibra de vidrio. Motor de polo sombreado. Solo cable de conexión. Sistema de cojinete de bolas preciso o cojinete de manga.

Temperatura de funcionamiento:
Cojinete de manga (sleeve bearing): -10ºC a +70ºC
Cojinete de bolas (ball bearing): -20ºC a +80ºC

Resistencia de aislamiento:
Mínimo de 10 megohmios a 500V DC (entre la carcasa y el terminal)

Rigidez dieléctrica:
1500 VAC durante un minuto

Peso:
260 gramos

0,00 € 0.0 EUR 0,00 €

0,00 €

Not Available For Sale

Esta combinación no existe.

Contáctenos





​​


Model No.BearingRated voltage(VAC)Frequency (Hz)Max.Rated current (mA)Max.input power (W)Speed (r.p.m.)Max. Air Flow (CFM)Max. Air Pressure (mmH2O)Noise dB(A)
KLE115AP120BSWHSleeve11550/60240/21020.0/18.42574/294020/2212.08/13.3046/49
KLE115AP120BBWHBall11550/60240/21020.0/18.42574/294020/2212.08/13.3046/49
KLE230AP120BSWHSleeve23050/60130/11018/.8/17.02600/294020/229.10/10.0046/48
KLE230AP120BBWHBall23050/60130/11018.8/17.02600/294020/229.10/10.0046/48
Model No.BearingRated voltage(VAC)Frequency (Hz)Max.Rated current (mA)Max.input power (W)Speed (r.p.m.)Max. Air Flow (CFM)Max. Air Pressure (mmH2O)Noise dB(A)
KLE115AP120BSWHSleeve11550/60240/21020.0/18.42574/294020/2212.08/13.3046/49
KLE115AP120BBWHBall11550/60240/21020.0/18.42574/294020/2212.08/13.3046/49
KLE230AP120BSWHSleeve23050/60130/11018/.8/17.02600/294020/229.10/10.0046/48
KLE230AP120BBWHBall23050/60130/11018.8/17.02600/294020/229.10/10.0046/48
