AC BLOWER 12137

https://www.luft.es/web/image/product.template/61/image_1920?unique=d92ff14

Size:
121 x 121 x 37( 4.76 " x 4.76 " x1.46")

Construction:
Spriral housing of fiberglass reinforced polycarbonate. Housing base of galvanized steel plate. Only lead wire. Precise ball bearing or sleeve bearing system.

Operating Temperature:
Sleeve bearing -10ºC to +70ºC
Ball bearing -20ºC to +80ºC

Insulation resistance:
10 meg Ohms min. at 500V DC
(between frame and terminal)

Dielectric strength:
1500 VAC one minute

Weight:
625 grams

0.00 € 0.0 EUR 0.00 €

0.00 €

Not Available For Sale

This combination does not exist.

Contact Us





​​

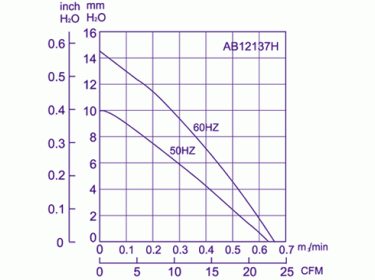

Model No.BearingRated voltage(VAC)Frequency (Hz)Max.Rated current (mA)Max.input power (W)Speed (r.p.m.)Max. Air Flow (CFM)Max. Air Pressure (mmH2O)Noise dB(A)
KLE115AP120ASWHSleeve1156017019.526002414.50-
KLE115AP120ABWHBall1156017019.526002414.50-
KLE230AP120ASWHSleeve23060902026002210.00-
KLE230AP120ABWHBall23060902026002210.00-
